1.1 Main applications and characteristics

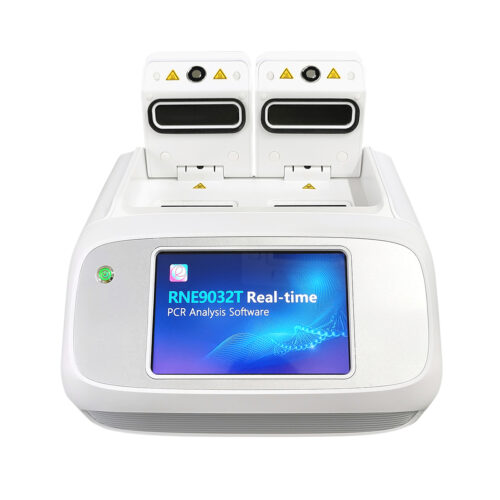

The RNE9032T real-time PCR system uses semiconductor technology to quickly implement the PCR amplification process, and uses a high-sensitivity photoelectric detection system to detect the fluorescence signal in real time, and analyzes and processes it through powerful analysis software.

This system has the following characteristics:

1. Double channels and double 32-well blocks design, can run two different programs at the same time.

2. Small size, light weight, easy to carry.

3. Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.

4. 7-inch high-definition TFT color touch screen, and embedded win10 operating system.

5. The experimental results can be printed directly or exported.

6. LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.

7. Unique hot lid lock design, one touch to open the lid.

8. With power failure protection function.

9. Forward and backward air vent design, can be placed side by side, saving laboratory space.

1.2 Model information and basic parameters and performance indicators

1.2.1 Model Description

1.2.2 Instrument construction

The instrument is mainly composed of control system, power supply system, photoelectric syst em, block parts, hot lid parts, moving parts, shell parts, embedded software and analysis softwar e, etc.Schematic diagram is as follows.
