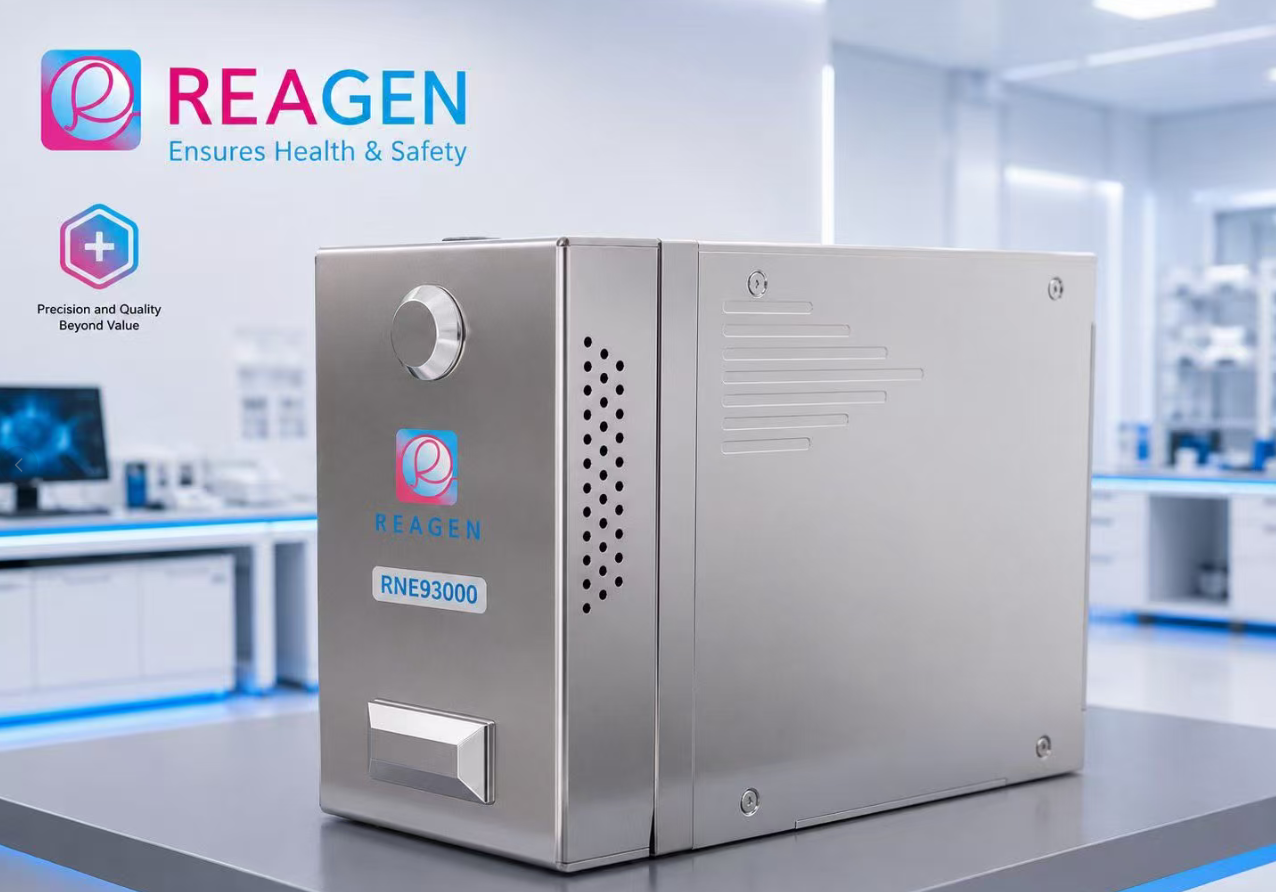

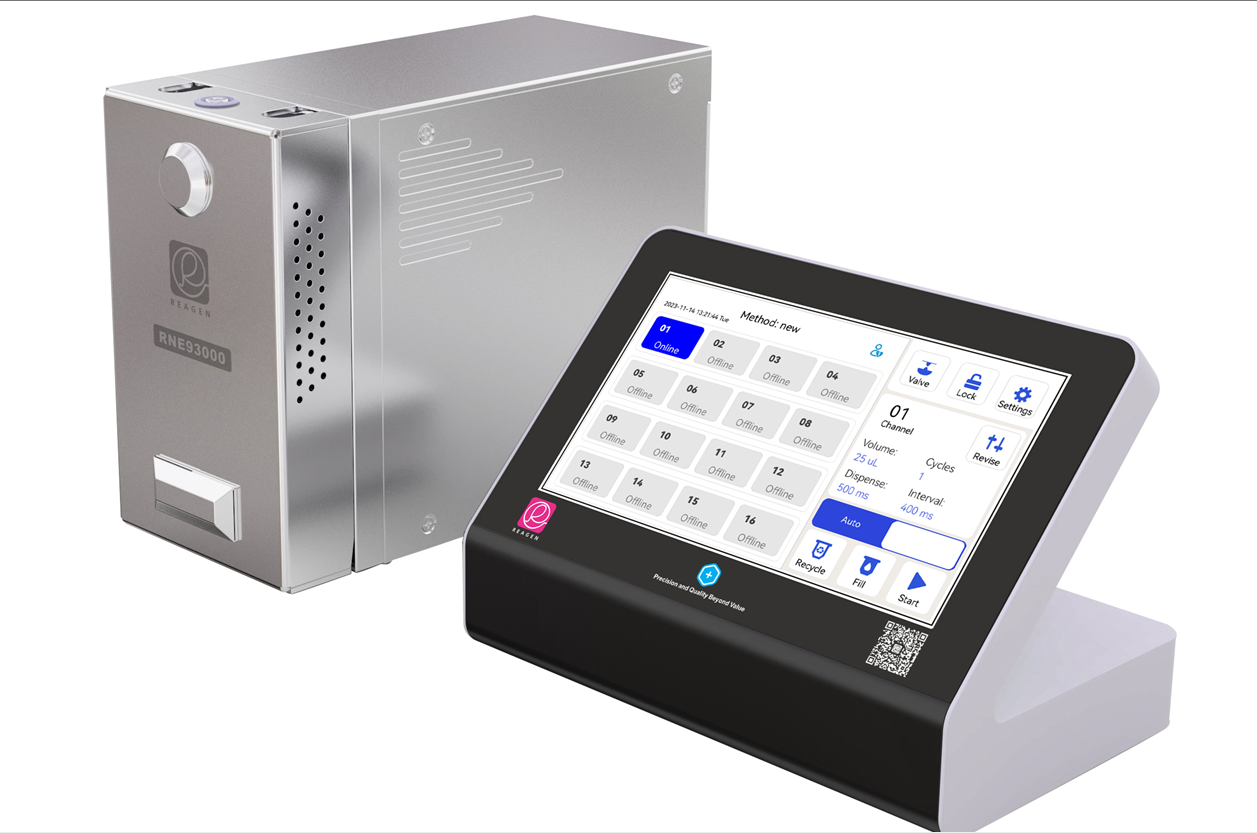

Lead Fluid RNE93000 series products are mainly used for high-precision filling of various aqueous solutions, filling range 25μL~10mL. It has the advantages of high accuracy, high repeatability, high efficiency, high cleanliness, maintenance friendly and simple operation. It can be used manually and automatically.

Application fields: Biopharmaceuticals, Food Industry, and More Typical applications: Suitable for Micro-dosing of Magnetic Bead Liquids, Glycerol, Glycerol Serum, Glycerol Ethanol, Glycerol Paraffin Oil, Glycerol Mix Reagents, Glycerol Protease K, Cell Lysis Buffers, Urea, and other Trace Filling Applications.

Feature

• High filling accuracy, the error is less than 0.1%.
• Modular design, easy to expand, compact, multiple pumps can be cascaded to form a multi-channel filling system.
• The man-machine interface directly input liquid volume parameters, easy to operate.
• Design of special mechanical structure to achieve the perfect combination of accuracy, efficiency and stability.
• filling efficiency can reach 2 bottles per second.
• High precision servo motor drive, large torque, free-maintenance.
• Small volume, spring-type pressurized tube structure and high working efficiency.
• Suction back function,zero dripping,instant shutdown.
• Nano-scale filling needle,which is hydrophobic and can achieve zero liquid suspension.
• The pump tube is easy to disassemble, which is conducive to cleaning and sterilization, and supports CIP and SIP.
• The wear of the pump tube is small, the continuous service life can reach 1000 hours, the 12-hour capacity.attenuation is less than 1%, and the maintenance is simple.

• It can be operated manually or used with an automatic production line.

Technical Parameter
