Vials Filling and Cap Scrimping Automatic Workshop Line

Vials Filling and Cap Scrimping Automatic Workshop Line

REAGEN Full automatic filling and cap scrimping workshop line-RNE90350 rotary fully automatic filling and capping machine is designed for automated filling, capping, and
locking of vials, essential oil bottles, and perfume bottles. It consists of five sequential steps: bottle sorting, filling. stop-pering, cap hanging, and capping. The system features stable performance and high compatibility with various pack-aging materials. Our company also provides high-speed filling and sealing equipment with a capacity of 180-300 bottles per minute.Application in pharmaceuticals,biotechnology,biomedical,medicines,IVD,ELISA,PCR,RDT

Equipment Introduction

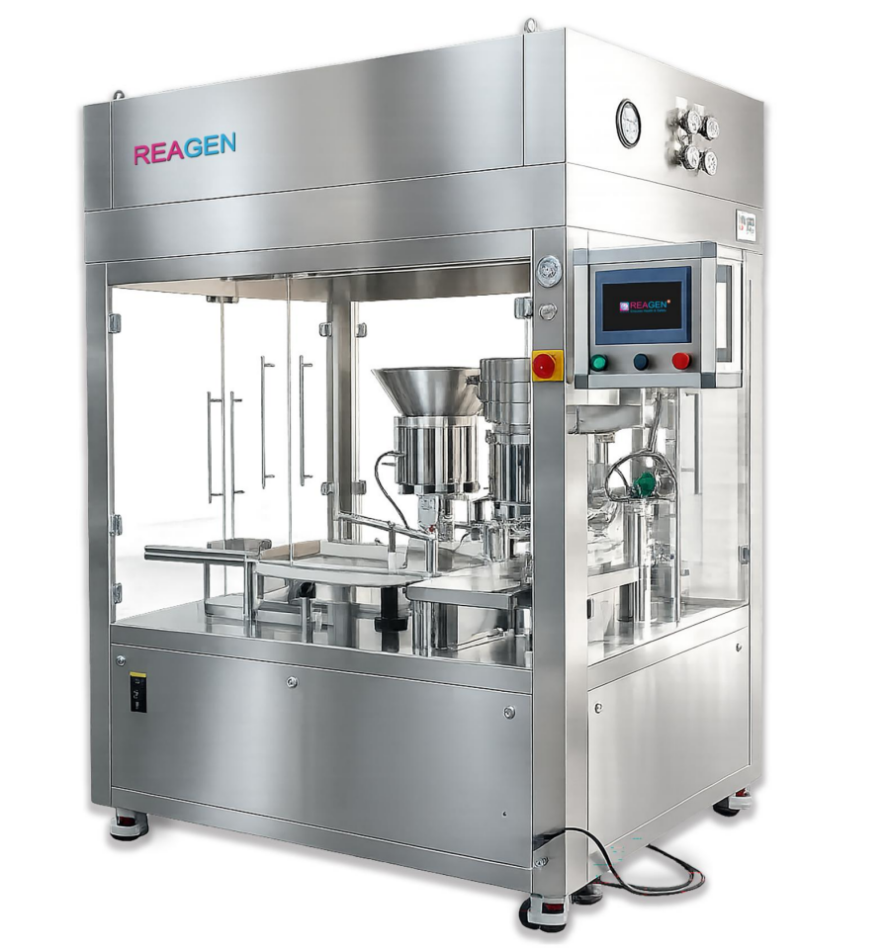

The  RNE90350  rotary  fully  automatic  filling  and  capping  machine  was  developed  and manufactured by our company in 2017. It is designed for the automated filling, capping, and locking of vials, essential oil bottles, and perfume bottles. The system consists of five sequential steps: bottle sorting, filling, stoppering, cap hanging, and capping. Its key features include stable production performance and strong compatibility with various packaging materials. Additionally, our company offers high-speed filling and sealing equipment capable of processing 180–300 bottles per minute.

  1. The rotary disk drive employs a self-developedservoseparator, which offers advantages over commercial cam mechanisms: compact size, lightweight design, easy installation, adjustable angles with flexible positioning, automatic zeroing upon return to the origin, high speed, and user- friendly operation.
  2.  For  lid  rolling,  ourcompany  employs  imported  steelsheets that  have  been  continuously developed  and  manufactured,  subjected  to  quenching  and   hardening  treatment,  enabling universal compatibility with various lid materials. Compared to high-speed cutting blade models, this design offers superior resistance to chip generation and material tearing.
  3. Achievesidenticalbottle diameter with adjustable sealing height and automatic alarm without internal stopper. The bottle placement and dispensing directions are aligned, facilitating operator convenience.
  4. Thevibration tray employs an exclusive variable-frequency control system, ensuring smooth material discharge, especially for white soft silicone (not butyl rubber).
  5.  The  compact  unit  features  Fuma-wheel  mobility,  allowing  oneperson  topush  or  pull  it effortlessly.

Device Features:

  1. The filling process employshigh-precision aseptic filling, simplifying thecleaning procedure.
  2. Four-piece rollinglid closure, ensuring no scratches during sealing
  3. Bothloading and unloading occur in the same direction, facilitating operational efficiency for personnel.
  4. Thereceiving tray can also be removed and connected to the labeling machine or another conveyor belt.
  5. Alarm triggered when neither plug nor coverispresent, followed by machine shutdown
  6. Allheight settings can be adjusted within20 seconds.
  7. Complies with GMP certificationstandard.
