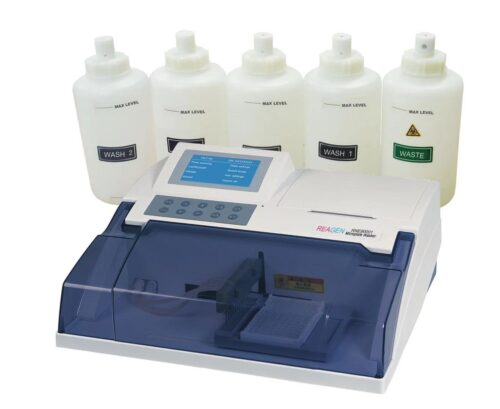

1. Brief introduction of the instrument

Englishoperating system, large screen liquid crystal display and graphic interface.
Support for single and three-channel washsystem apply to washes flat, U and V bottom ELISA plates and strips as well as standard 96-well or other types of plates.
Convenient programming, wash time, liquid volumeand soak time programmable. Plate washing, row washing and row-skip washing available.
Automatic positioning. Manual positioning to ensure the precision.
The design of double-pin wash head reducescross contamination.
Washand waste bottles have autoalarm function with liquid-surface detecting.
8 and 12 way wash head available.
Incubation function (optional).

1.2 Specifications of the instrument

Wash head:	8-way or 12-way
No. of wash profiles	10
Capacity of the storage bottle:	Wash bottle, distilled water bottle and waste bottle, 2L each bottle respectively
Washing protocols	100
Washing cycles	Max. 99
Soak / shaking time	0-24 h
Mode	Plate & strip wash
Accuracy:	+/- 5%
Residual volume	< 1 µl
Washing volume	10-3000 µl / well
Resolution	1µl
Temperature accuracy	+/- 5 %
Temperature stability	+/- 5 %
Temperature uniformity	+/- 1 °C
Warm-up time	6 min. ( ambient 25 °C to room temperature)
Display	Liquid crystal display
Interface	RS-232 bi-directional communication port
External dimensions	450mm(L)×390mm(W)×190mm(H)
Weight	13kg
Power supply	a.c. 220V, 50Hz
Input power	80VA
Working environment	10℃~30℃, Relative humidity ≤70%
Fuse	T3.15AL 250V, Ф5×20

Brand	REAGEN
Model	RNE90001
